Booms

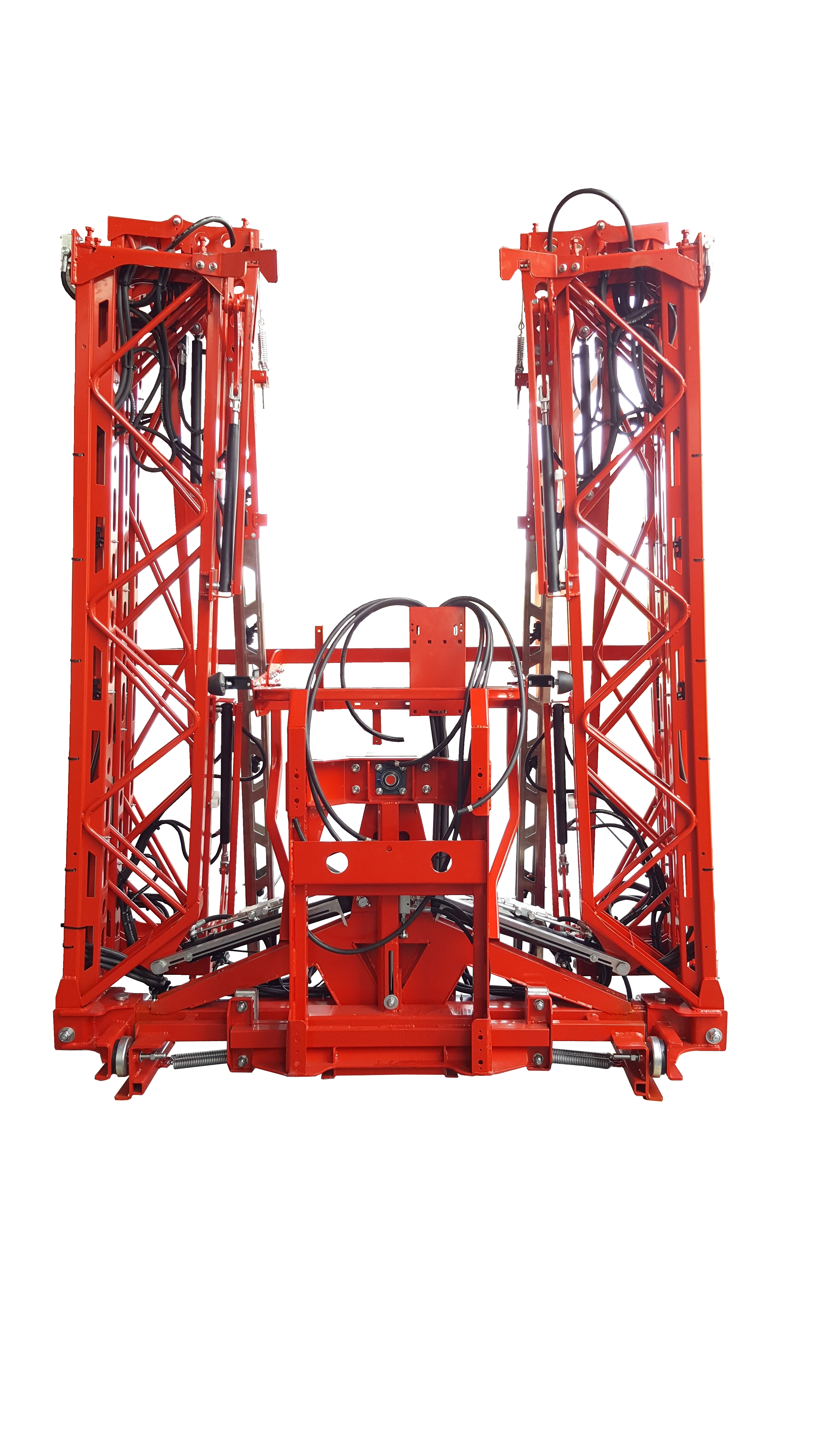

Booms i7S MODEL

Standard equipment18 m21 m24 m
FrameSteelSteelSteel
CoverAnticorrosion paintingAnticorrosion paintingAnticorrosion painting
Sections5-75-75-7
Gets anti-dripTri-get plasticTri-get plasticTri-get plastic
Supervariable geometryYesYesYes
Hydraulic functions999
Joystick 6 buttonsYesYesYes
Openingverticalverticalvertical
Opening sectionsIndependentsIndependentsIndependents
TubesStainless steelStainless steelStainless steel
End of the boomsSteelSteelAluminium
Elastic atomatic returnfront-backfront-backfront-back
Antiwhiplash correctionYesYesYes
Automatic pendular balance correctionYesYesYes
Anti-gapEASY-LEVELEASY-LEVELEASY-LEVEL
18 m21 m24 m
Length (mm)91010501050
Widht (mm)240024002400
Height (mm)279027902790
Weight (kg)700 kg830 kg850 kg
Description
Hydraulic elevator + pneumatic suspension
Pneumatic suspension
Foam marker kit
Triangular road light kit
Road light with V-20 plates kit & Support of rotary light
Road light with V-20 plates kit

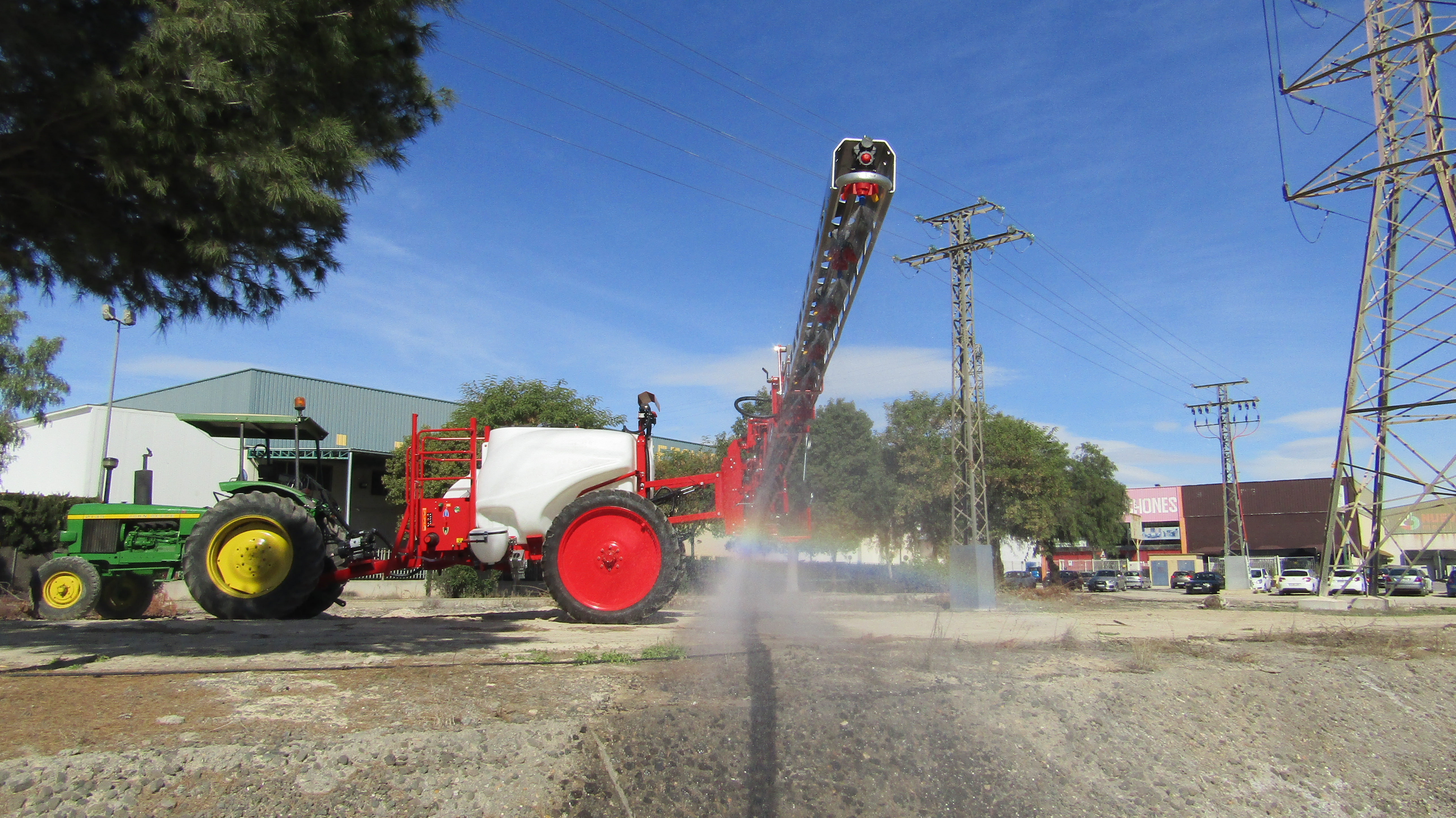

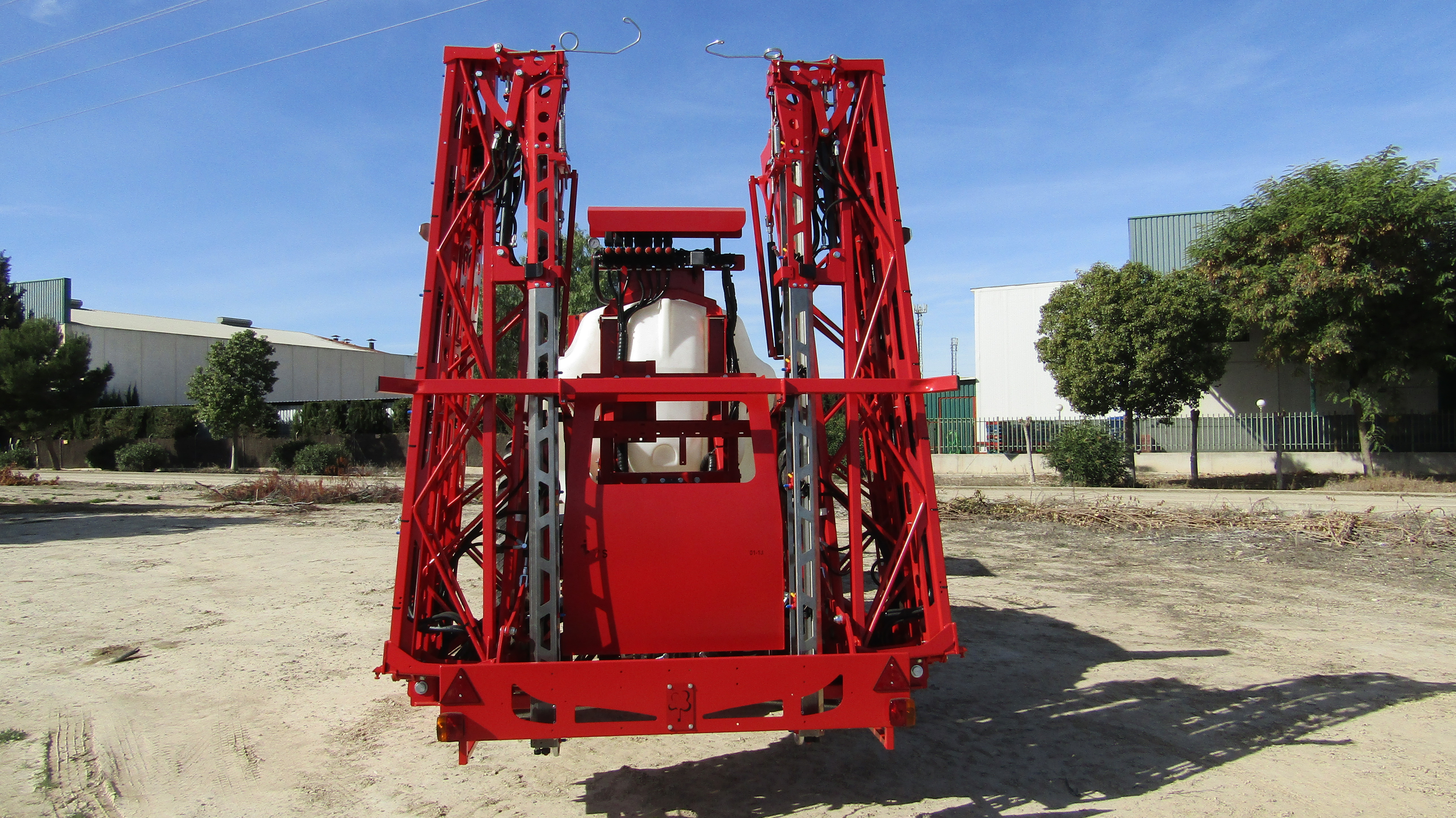

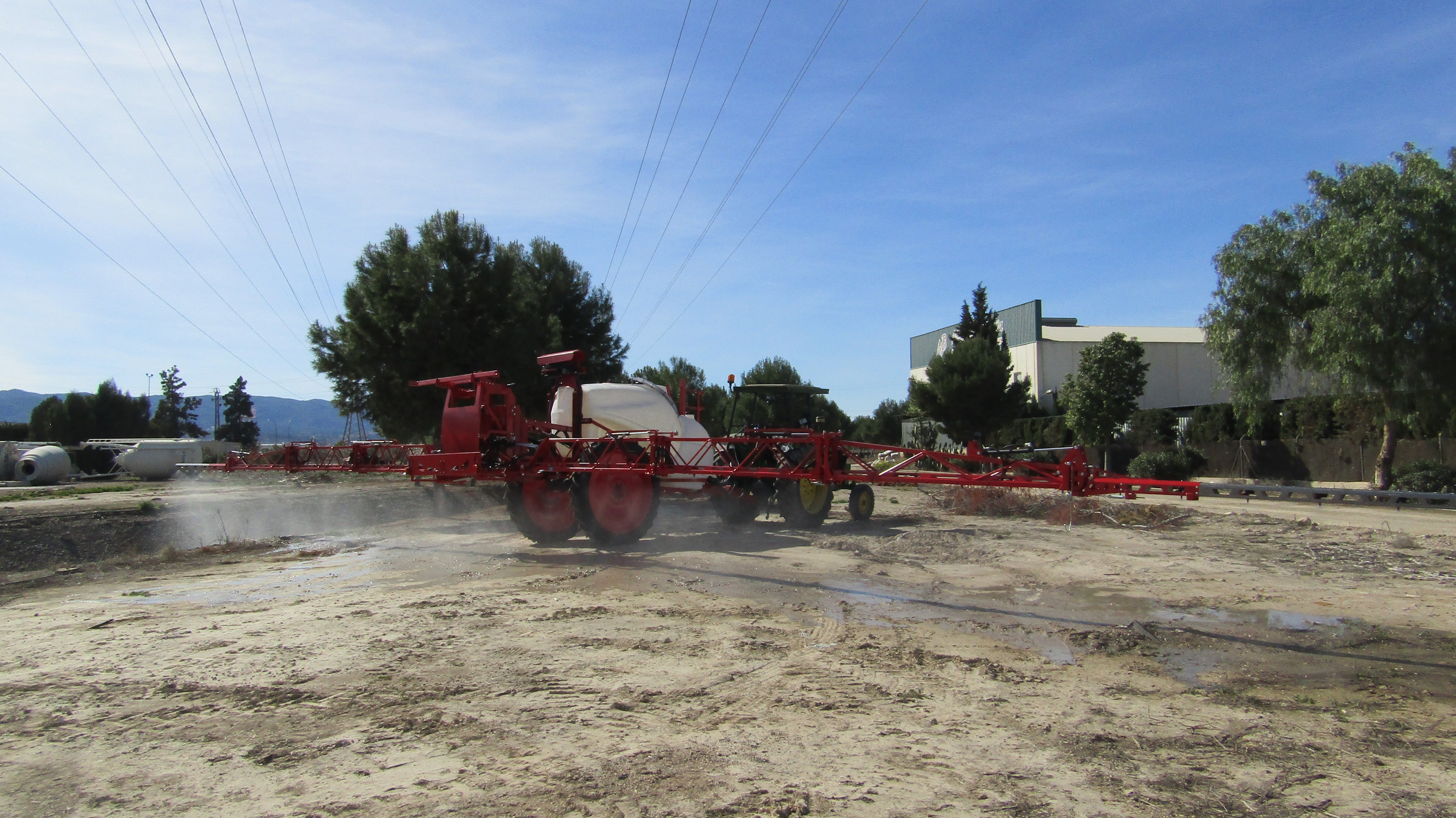

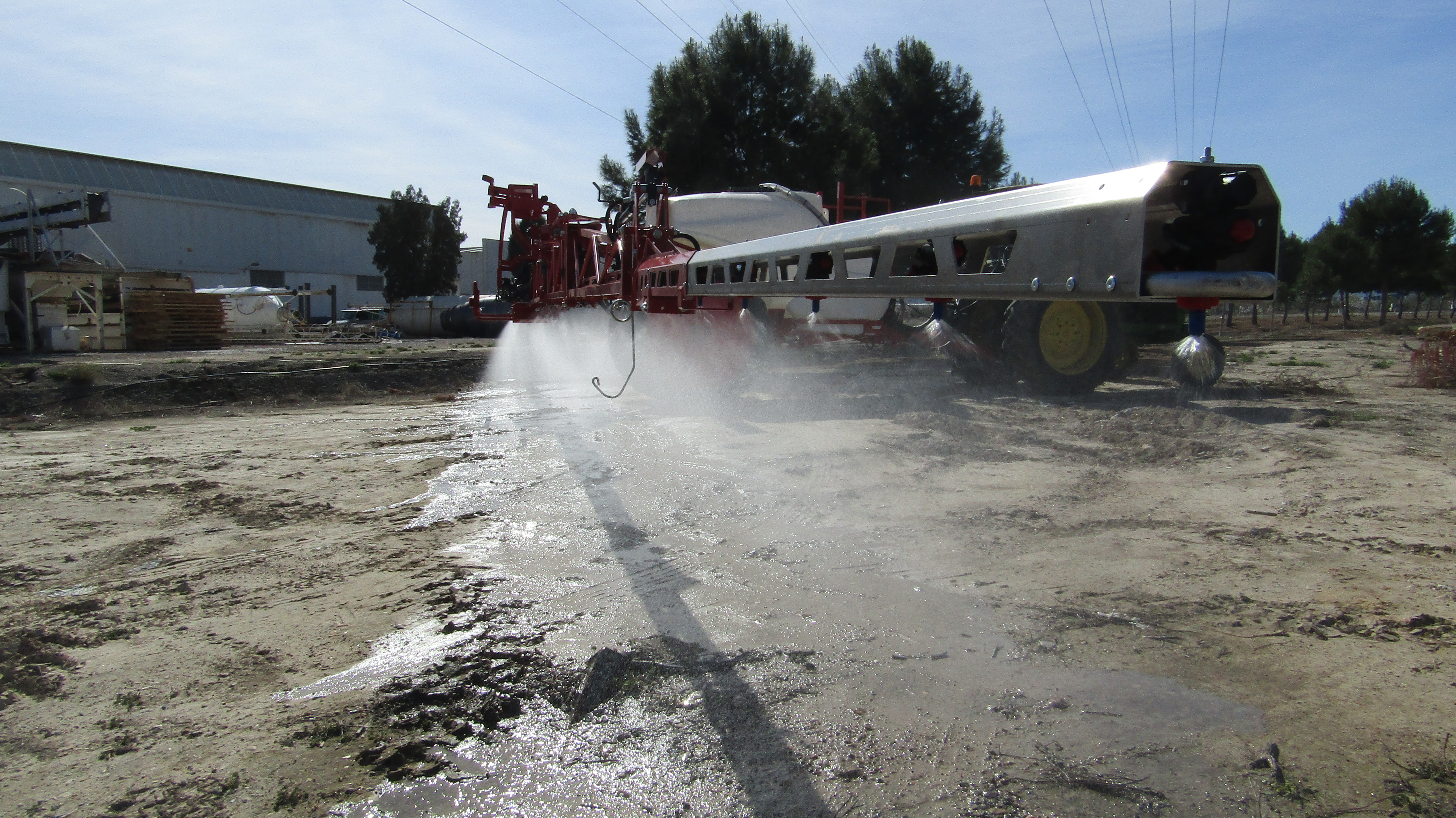

Images


Click on the images to expand them.

Video
