Trailed sprayers
Trailed sprayers BASIC
| Standard equipment | 600 L | 1000 L | 1500 L | 2000 L | 3000 L |
|---|---|---|---|---|---|
| Frame | Reinforced steel | Reinforced steel | Reinforced steel | Reinforced steel | Reinforced steel |
| Cover | Anticorrosion painting | Anticorrosion painting | Anticorrosion painting | Anticorrosion painting | Anticorrosion painting |
| Tank | Polyethylene | Polyethylene | Polyethylene | Polyethylene | Polyethylene |
| Hand whasing tank | Yes | Yes | Yes | Yes | Yes |
| Pump | Diaphragm/piston | Diaphragm/piston | Diaphragm/piston | Diaphragm/piston | Diaphragm/piston |
| Pressure regulator | Manual | Manual | Manual | Manual | Manual |
| Tank opening filter | Yes | Yes | Yes | Yes | Yes |
| Suction filter with safety valve | Yes | Yes | Yes | Yes | Yes |
| Towbar | Ring type | Ring type | Ring type | Ring type | Ring type |
| Shaft with brake | No | No | Yes | Yes | Yes |
| 2 spray guns | Yes | Yes | Yes | Yes | Yes |
| PTO shaft | Yes | Yes | Yes | Yes | Yes |
| Road lights kit | Yes | Yes | Yes | Yes | Yes |
| Anti-pollution hydro-injector | Yes | Yes | Yes | Yes | Yes |
| Wheels | 175/70-R13 | 175/70-R13 | 10,0/75-15,3 | 10,0/75-15,4 | 11,5/80-15 |
| 600 L | 1000 L | 1500 L | 2000 L | 3000 L | |
|---|---|---|---|---|---|
| Length (mm) | 2600 | 3300 | 3650 | 4275 | 4275 |
| Width (mm) | 1210 | 1450 | 1635 | 1690 | 1770 |
| Height (mm) | 1250 | 1400 | 1450 | 1650 | 1800 |
| Weight (kg) | 450 | 500 | 605 | 805 | 900 |
| Description |
|---|

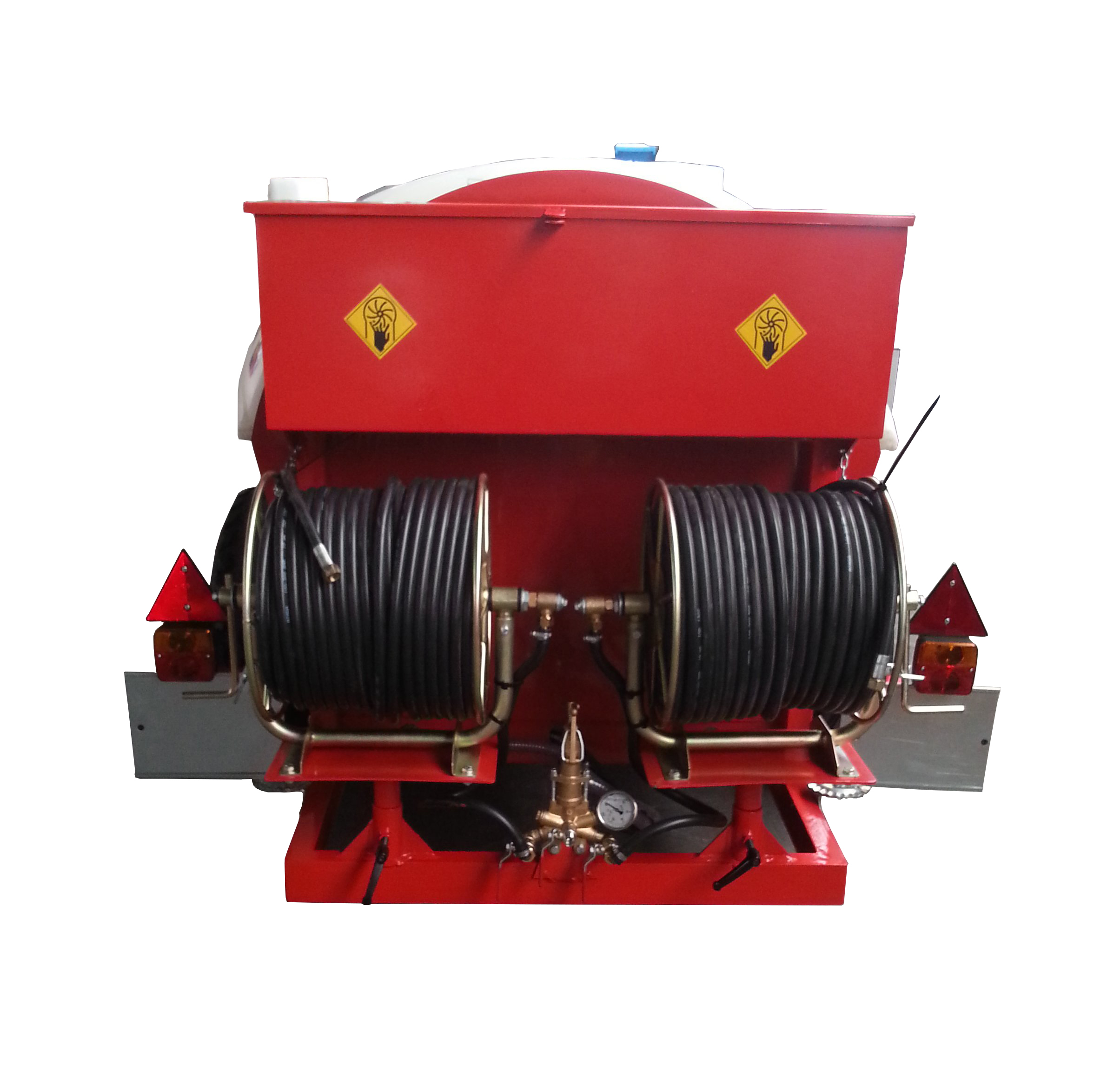

| Hose reel kit 50 m |
| Hose reel kit 100 m |
| Person carrier plataform |
| Articuled towbar |
| Homokinetic PTO shaft |
